Ultrasonic generators

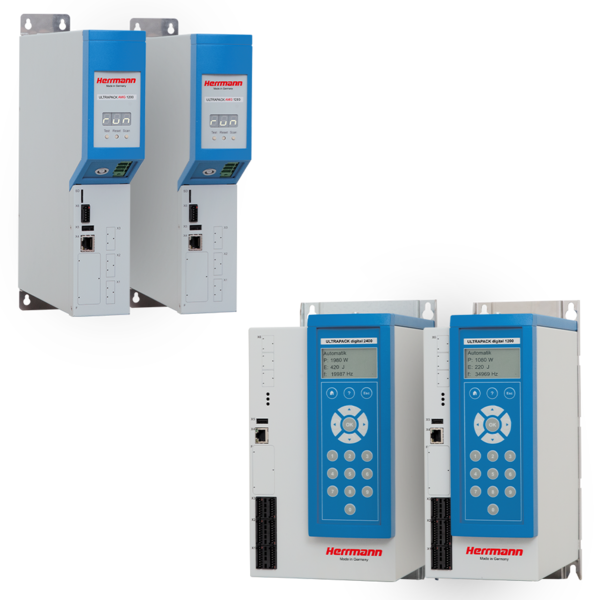

ULTRAPACK

Ultrasonic generators for packaging technology.

Robust
Powerful
Precisely adjustable

Versatile generators for intermittent and continuous packaging applications - The fully digital ULTRAPACK ultrasonic generator is designed for use with fast-operating packaging machines. Its manifold software functions allow for repeticious control of the weld process resulting in highest possible sealing quality. The ULTRAPACK digital is an integral part of the PACKLINE modules by Herrmann.

DataRecorder G3

Recording, archiving, and analyzing more than 150 parameters with every weld process:

Real-time visualization of weld process graphs and trend diagrams
Communication of status information, measured values, limits, and parameters in MES systems via Ethernet (UDP)
Export of selected process data and weld graph data into the file system for further processing (CSV, ASCII formats)
Plug & Record: Connect with the network and simultaneously record process data from up to 16 generators of the ULTRA-X generation
100% data safety through continuous recording with monitored data buffering
Fast navigation through previously archived data

The DataRecorder software can be used with all ultrasonic generators of the ULTRA-X generation.

Interaction between machine, system, and generator in the DataRecorder software

Perfect Product

Related products

Longitudinal Seam Module (LSM), a standard system in the PACKAGING business unit

LSM Longitudinal seal modules

The LSM Fin longitudinal seal module stands for high quality, continuously manufactured sealing lines on bags (horizontal and vertical) and on chained bags. Easily exchangeable sealing tools allow for an individual and material-saving seal design.

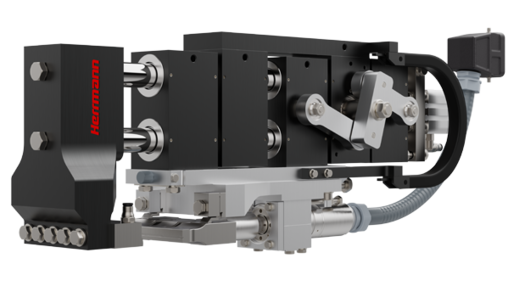

Top seam module (TSM), a standard system from the PACKAGING business unit

TSM Top seal modules

The focus is on the intermittent sealing of top seals, of stand-up pouches, for example. The TSM is used for the packing of liquid, powder or paste feed materials. The ultrasonic vibration results in a reliable joint quality, also with product residues in the seal area.

Valve sealing module (VSM), a standard system from the PACKAGING business unit

VSM Valve seal modules

The vent applicator from Herrmann Ultraschall is a compact module which is used for the sealing of aroma protection and degassing vents in an exceptional variety of packaging machines.
