HSG

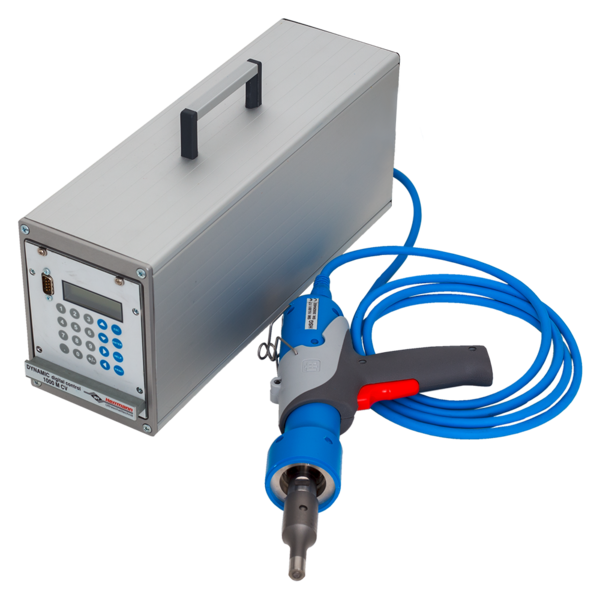

Handheld ultrasonic welder

The welder can be used to join and reshape thermoplastic materials ultrasonically. This offers enormous advantages both technically and economically.

  • 35 kHz operating frequency
  • 1000 W generator power
  • Quadruple MULTIPLEXER

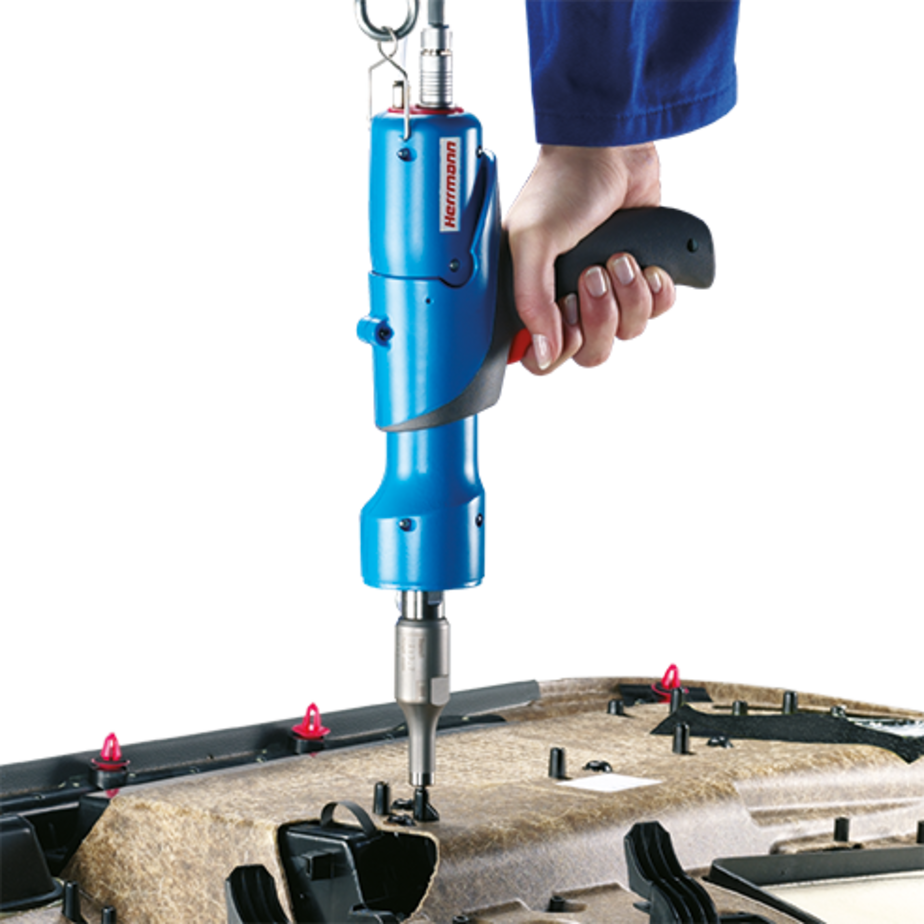

The ergonomic product design and low weight of the handheld ultrasonic welder guarantee fatigue-free work. Without major modification or rewiring, it can be quickly and simply supplemented with a built-in multi-finger switch. The handheld ultrasonic welder and sonotrode are kept safe in the HSG MobileCase. This provides optimal storage for both the generator and connector cable. All common sonotrodes can be properly installed with the accompanying installation tools.
Handling variations are minimized thanks to the ultrasonic generator DYNAMIC digital control 1000 M with built-in time / energy / power switch-off. The freely programmable switch-off includes intelligent technology for better-quality and  repeatable weld results.

  • Can be quickly retrofitted
  • Ergonomic handling
  • Programmable energy switch-off
  • Simple tool change
  • Wide range of accessories
Type designation HSG digital control 1000
Generator DYNAMIC digital control 1000 M
Generator power [W] 1000
Frequency [kHz] 35
Connection voltage [V] 230
Time/power/energy switch-off
Amplitude adjustable from 70% - 100% programmable
Savable weld programs 16
Four-line display & keyboard
RS 232 Data Port
Weight HSG [kg] 0,7
Weight generator in case [kg] 4,7
Handle optional
Sonotrode cooling optional
Dimensions generator in case [mm] H 170 x B 120 X T 390
